PROTEUS Heat Pump Consumer Unit - Suitable for Vaillant Heat Pumps

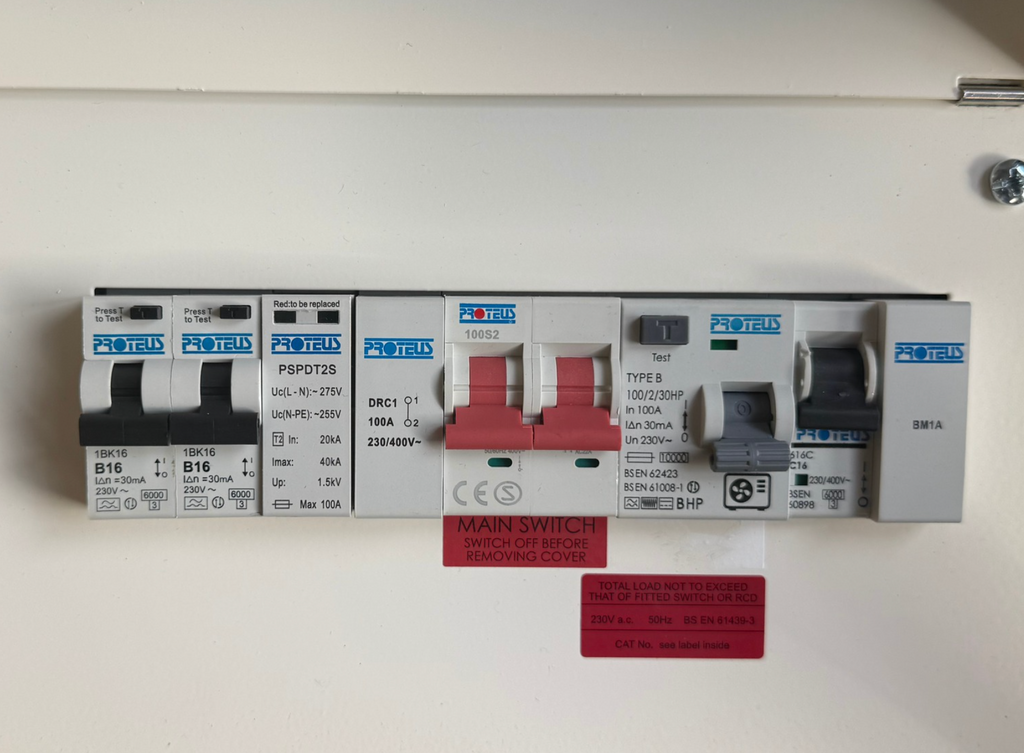

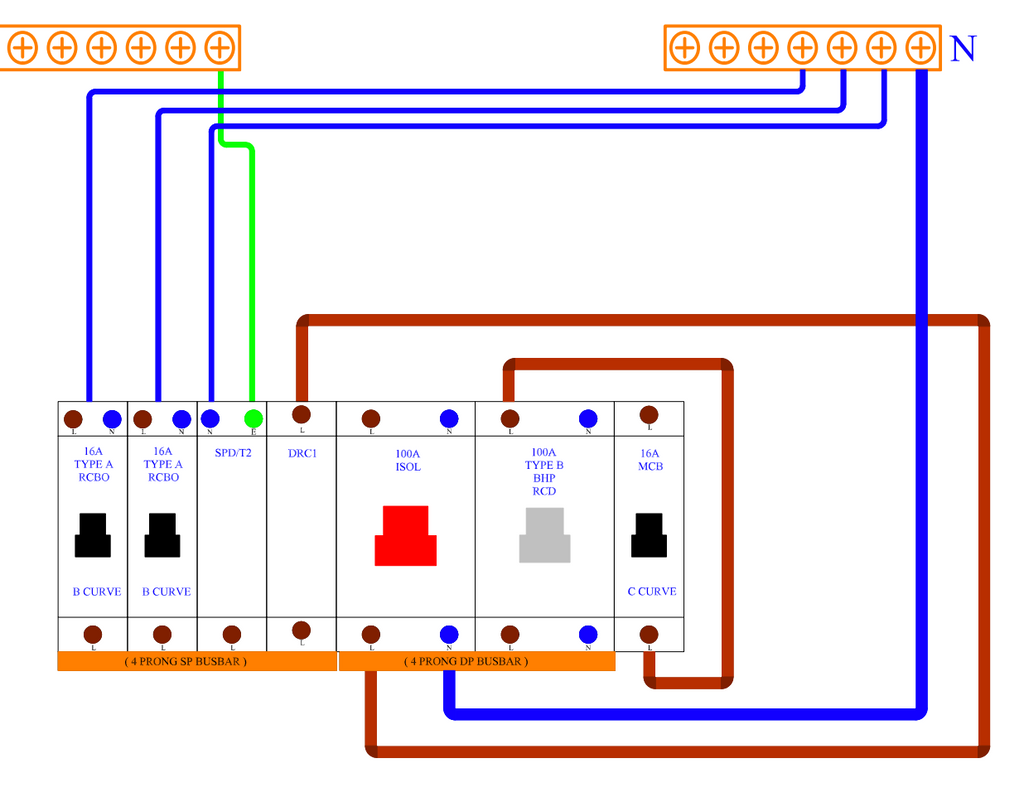

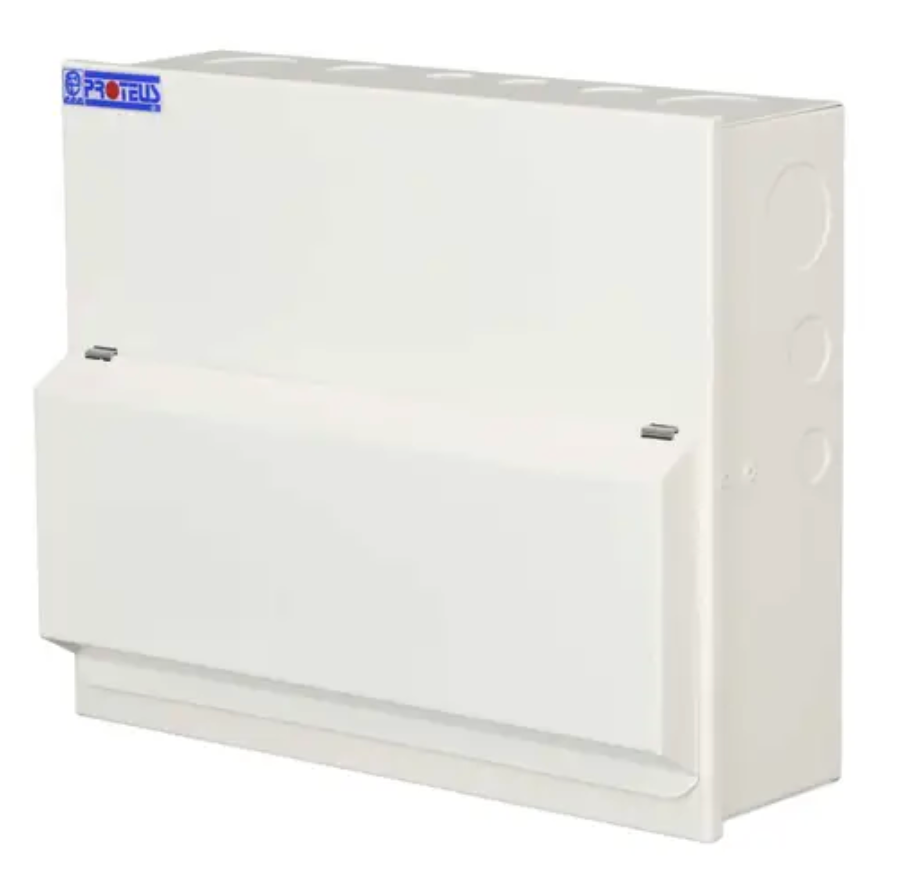

Proteus 10-way metal consumer unit fitted with a 100A main switch, surge protection, B-HP RCD, 16A or 25A C MCB (select option required), 2x 16A RCBO's for controls and immersion heater.

Description:

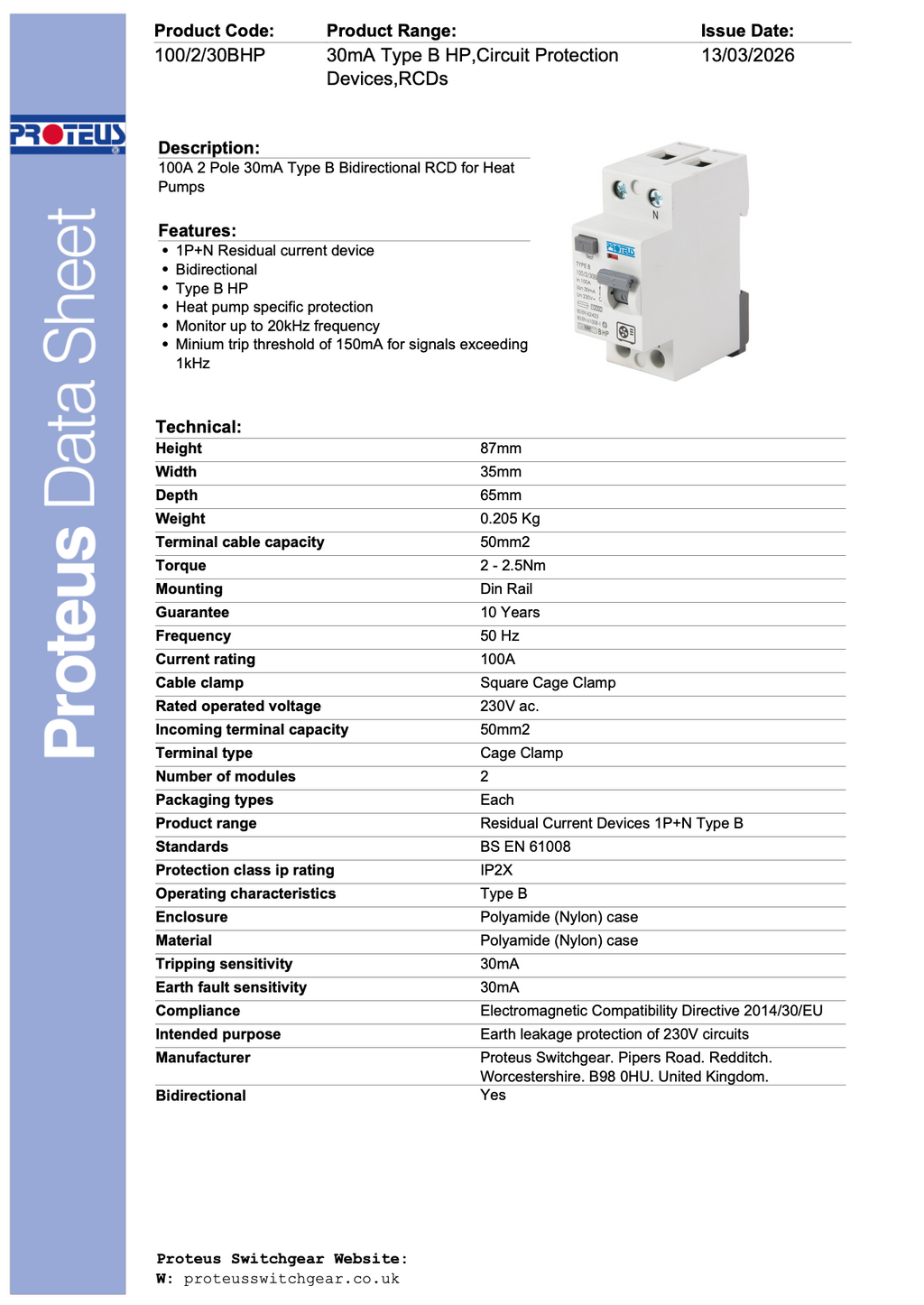

• DP 100A 2 Pole 30mA Type B Bidirectional RCD for Heat Pumps
• 16A or 25A C Curve MCB.
• 16A RCBO's
• Surge Protection

Features:

• Type B HP
• Bidirectional
• Heat pump specific protection
• Monitor up to 20kHz frequency

• Minium trip threshold of 150mA for signals exceeding 1kHz

This is one of the few, fully assembled, Vaillant compliant heat pump compliant consumer units on the market.
